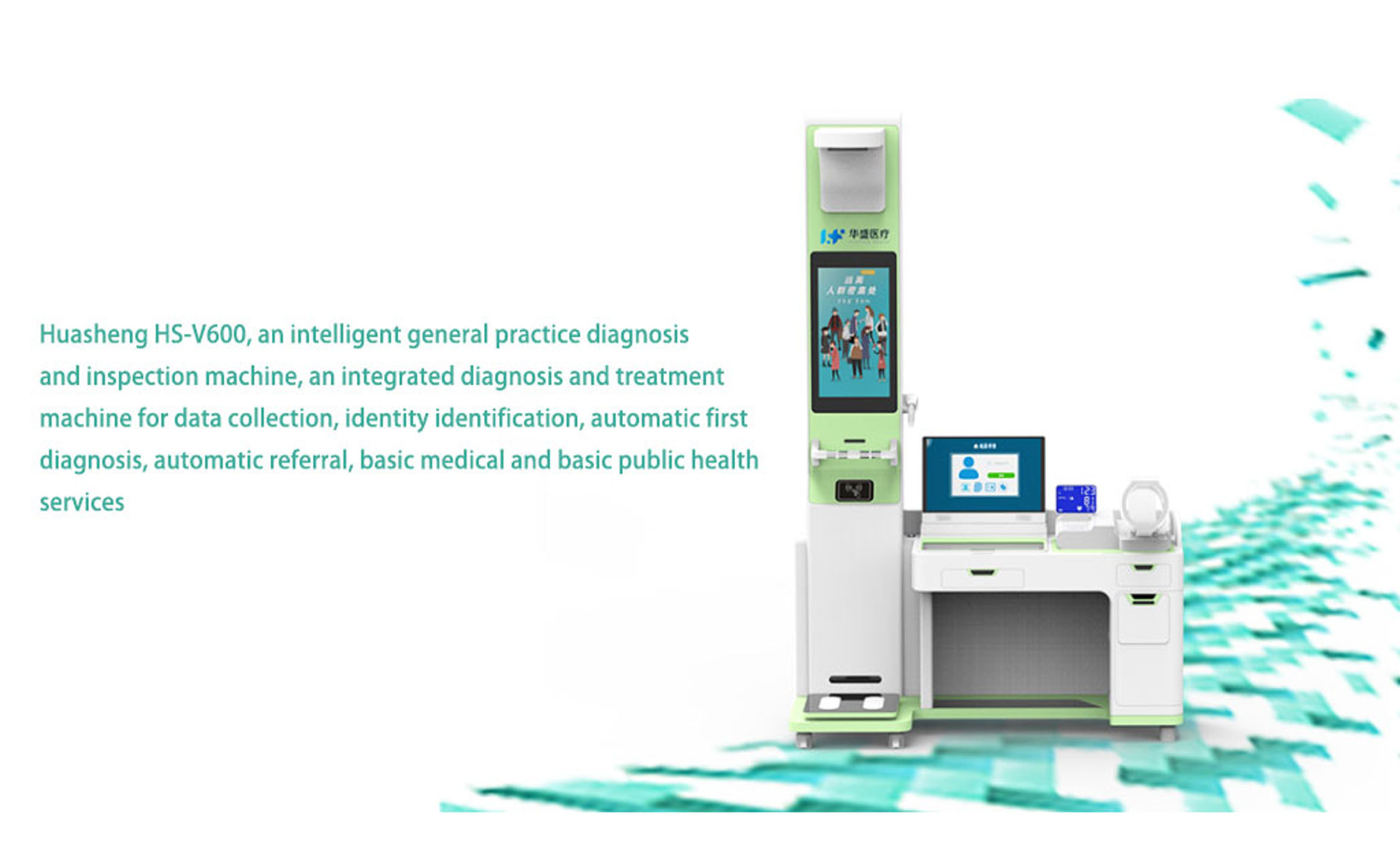

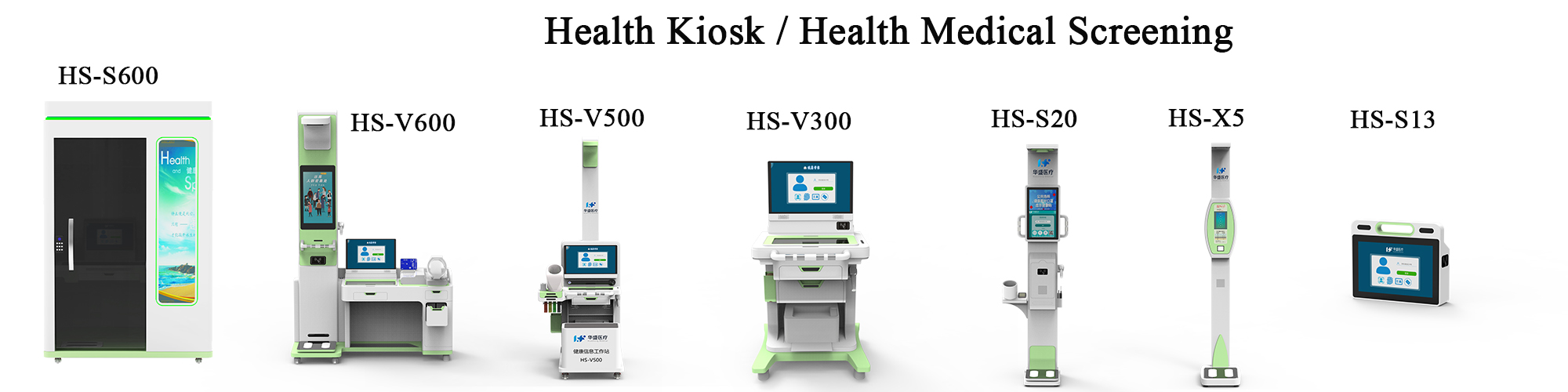

HS-V600 intelligent whole body health management all-in-one machine is a high-end intelligent health examination device. The equipment has beautiful and atmospheric shape, high-quality accessories, accurate measurement, and adopts a new windows system, fully automatic measurement, with voice broadcast, electronic display, optional face recognition function, and free connection to the regional standardized system, injecting new vitality into the construction of Internet + smart medical care. It is the preferred unit of major hospitals, physical examination centers, health huts, hospitals, elderly health centers, high-end clubs and other units
Product features of health management machine

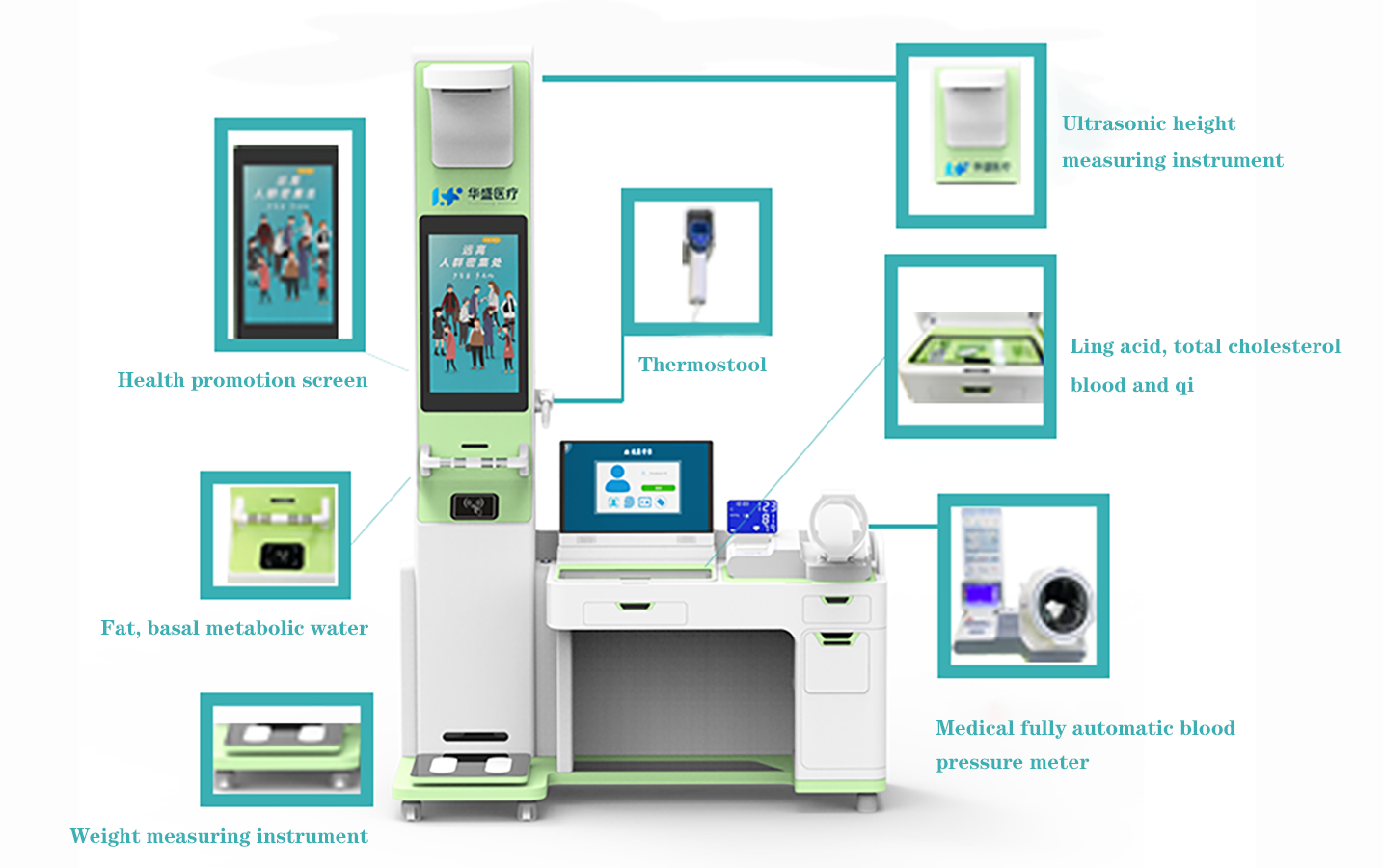

Equipment functions

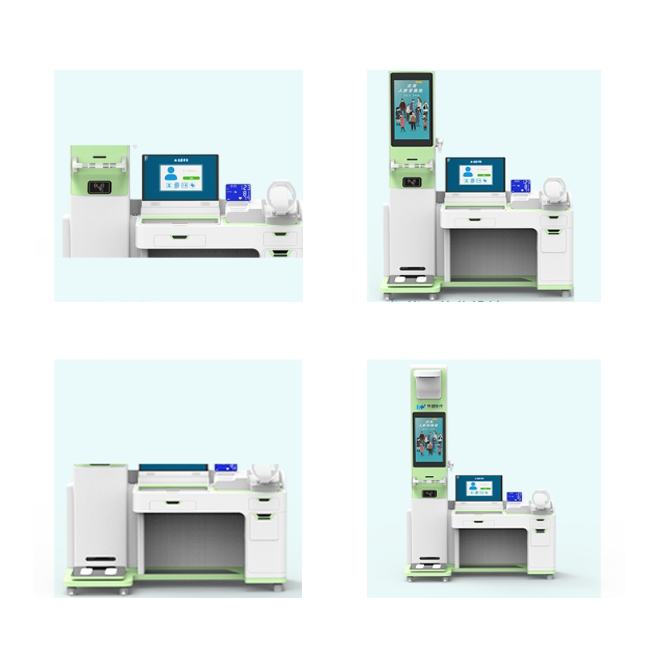

Product details
Standard testing
Height, weight, BMI, body fat, waist circumference, blood pressure/pulse,
Four types of electrocardiogram, blood sugar, uric acid, total cholesterol, and blood lipids
Expand testing
Urine detection, lung function detection, bone density detection, cardiovascular detection, arteriosclerosis detection, vision detection
Features
The main operating area adopts a 24-inch capacitor-controlled touch screen, dust-proof design, clean and beautiful, stable performance, light green, standard for appearance, representing health, vitality, and progress. It also supports customization of various colors and full voice-guided self-service operations, supports brushing the ID card, entering a mobile phone number or face recognition file building and measurement integrated design, which is in line with operating habits, and is convenient for mobile phones to be equipped with a high-definition camera with a thermal printer, and prints physical examination reports efficiently. Support third-party platform data docking
Technical parameters
| Product Model | HS-V600 |
| Power Consumption | 120W |
| Power Supply | AC 220V/50HZ |
| Network | RJ45/WIFI |
| Size | 1.6m*0.7m*2.4m |
| Ultrasonic Height and Weight | Height range 70-205cm, accuracy ±0.5cm, using high-precision sensors Weight range 2.0-250KG with an accuracy of ±0.1KG, using precision balance beam sensors |
| Blood Pressure | Suitable for arm circumference: 17cm-42cm, measurement range: pressure 0~300mmHg (0~40) kPa Pulse: 40 beats/min~180 beats/min |
| Blood Oxygen Saturation | Measurement range: 70-100% (±2% in normal state, ±3% during exercise or weak perfusion, undefined below 70%) |
| Industrial Control Host | 4-core CPU, 64G storage |
| Intelligent Dual Screen | 22+24-inch high-definition screen, dual-screen display |
| Printer | A4 laser printer |
| Infrared Thermometer | Measurement range: (in-body mode): 32.0℃-42.5℃, test accuracy: ±0.2℃ |
| Electrocardiogram | Six-lead, twelve-lead |
| Body Fat | Fat content, water content, basal metabolic rate, body type judgment, bone mass, muscle rate, visceral fat, muscle mass, body fat mass, body water content |
| Waist Measurement | Three-dimensional measurement, accuracy 1mm |
| ID Card Reader | Complies with general technical requirements for resident ID card readers, compatible with ISO14443 (TypeB) standard; adopts non-contact IC card technology, compatible with computers or other Device connection can be used to read information from the dedicated chip inside resident ID cards |
| Network | Supports wired interfaces, wireless wifi |
Health management machine application field
The HS-V600 intelligent high-end full-body health management machine is a new product independently developed by Huasheng Medical Technology. It can intelligently recognize faces (optional), has a high-end and atmospheric appearance, and is accurately measured. It is widely used in hospitals, schools, physical examination centers, health huts, nursing homes, beauty and fitness clubs and other height measurement places.
