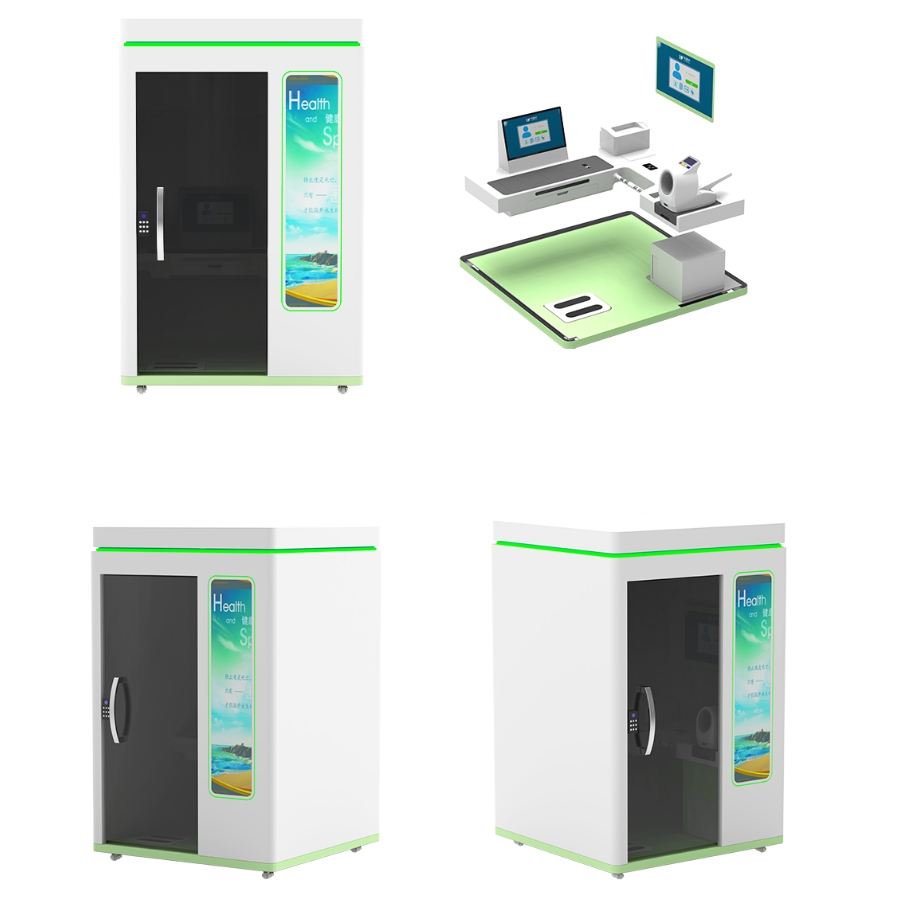

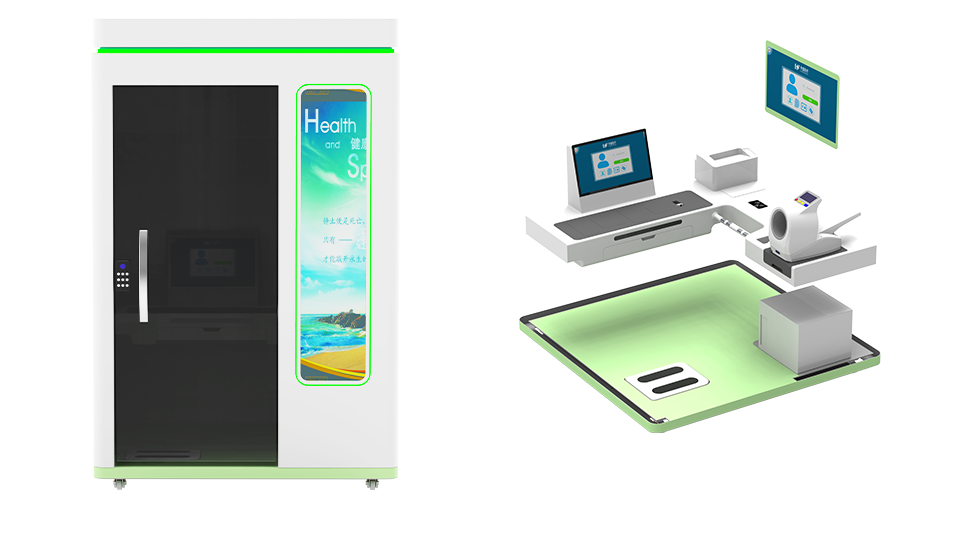

HS-S600

Health Information Workstation Product Introduction
HS-S600 intelligent whole-body health all-in-one physical examination device is a high-end intelligent health management integrated physical examination device. The equipment is beautiful and atmospheric, with high-quality accessories, accurate measurement. It adopts a new windows system, fully automatic measurement, with voice broadcast, electronic display, optional face recognition function, and free connection to the regional standardized system, injecting new vitality into the construction of Internet + smart medical care. It is the best choice for major hospitals, physical examination centers, health huts, hospitals, elderly health centers, high-end clubs and other units.

Testing items
Complete testing projects, support function expansion covers basic public health projects, support interface docking data upload, project expansion, voice guidance, self-service one-stop physical examination, instant access to physical examination reports

Product features of health information workstations

1. Universal wheel structure with lock, convenient for mobile transportation。
2. Translucent tempered glass design protects privacy while not giving people a claustrophobic feeling: the full official fingerprint lock design can be unlocked with fingerprint, can be unlocked with card, and can be password-free。
3. The unlocking measurement project adopts a tiled countertop design, simple and intuitive. The blood pressure meter adopts a drawer structure design to meet the needs of people of different heights. Built-in air conditioning is met to meet the needs of different semi-open environments, and ensure that users use this equipment in a comfortable environment: built-in ultraviolet antivirus and automatic hand washing and disinfection machine to ensure the clean and hygienic environment of the equipment to the greatest extent.
4. PVC floor glue design, wear-resistant, easy to clean and disinfect; built-in smoke and fire alarm system is safe and reliable: standard light green, healthy, energetic, and can customize various color matching specified by customers.
5. Full voice-guided self-service operation, swipe your ID card (C card) or enter your mobile phone number to build files and measure。
6. Capacitive touch operation screen, equipped with high-definition camera, 32-inch high-definition full-view advertising screen, dual-screen different display, can be used for advertising

7.Standard A4 laser printer, high-efficiency printing of physical examination reports supports data docking of third-party platforms

Product details

Technical parameters

Product Model	HS-S600
Power Consumption	150W
Power Supply	AC 220V/50HZ
Network	RJ45/WIFI
Size	1.6m*1.6m*2.4m
Ultrasonic Height and Weight	Height range 70-205cm, accuracy ±0.5cm, using high-precision sensors. Weight range 2.0-250KG, accuracy ±0.1KG, using precision balance beam sensors.
Blood Pressure	Suitable for arm circumference: 17cm-42cm, measurement range: pressure 0~300mmHg (0~40)kPa, pulse: 40 beats/min~180 beats/min
Blood Oxygen Saturation	Measurement range: 70-100% (±2% normal state, ±3% exercise or weak perfusion, undefined below 70%)
Industrial Control Host	4-core CPU, 64G storage
Intelligent Touch Screen	Capacitive touch operation screen, equipped with high-definition camera, 32-inch high-definition full-view advertising screen, dual-screen display, can be used for advertising promotion
Printer	A4 laser printer
Infrared Thermometer	Measurement range: (in-body mode): 32.0℃-42.5℃, test accuracy: ±0.2℃
Electrocardiogram	Six-lead, twelve-lead
Body Fat	Fat content, water content, basal metabolic rate, body type judgment, bone mass, muscle rate, visceral fat, muscle mass, body fat mass, body water content
Waist Measurement	Three-dimensional measurement, accuracy 1mm
ID Card Reader	Complies with the general technical requirements for resident ID card readers, compatible with ISO14443 (TypeB) standard; adopts non-contact IC card technology, can be connected to computers or other devices for reading information from resident ID card dedicated chips

Health information workstation application field

The HS-S600 intelligent high-end full-body health examination machine is a new product independently developed by Huasheng Medical Technology. It can intelligently recognize faces (optional), has a high-end and atmospheric appearance, and is accurately measured. It is widely used in hospitals, schools, physical examination centers, troops, health huts, nursing homes, beauty and fitness clubs and other height measurement places.
